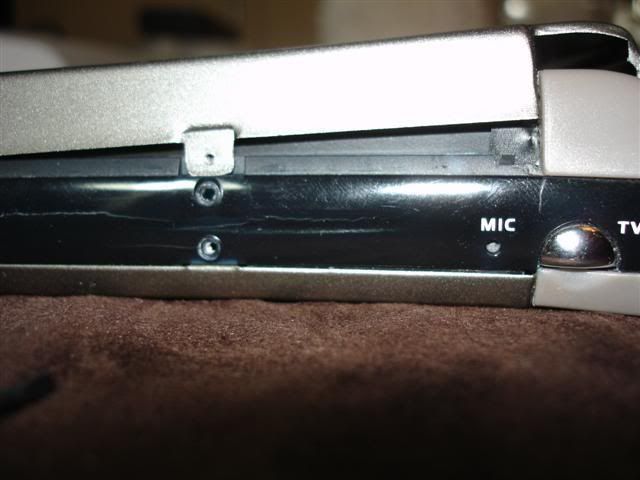

Here we are, a step by step picture guide of how to open up the Archos AV400 series.

Tools: Small phillips head (+) screw driver

1. Download the freeware: Swissknife, install it on your computer
2. Go to www.archos.com and download the latest firmware (for your model)
3. Follow the below instructions and replace the hard drive
4. Plug Archos using USB cable into your computer, turn it ON
5. Using Swissknife, format the new harddrive to FAT32 format
6. Copy over the firmware file to the Archos
7. Turn off the Archos, unplug from the computer
8. Turn ON the Archos, go to SETUP and activate the UPDATE FIRMWARE button
9. Plug Archos back to the computer, turn ON
10. Create 3 new folders in the Archos: photos, music, video
11. Unplug Archos from computer

Now try it out ! It should work just fine !!!





Now screw all the screws back in, not TOO tight because you are screwing into plastic. May break it.

(Go back up to the top of this post and follow the instructions on how to format it)


Top

 Post subject:
PostPosted: Sat Mar 29, 2008 5:26 am
Offline
Moderator
Moderator

Joined: Tue Nov 14, 2006 3:15 am
Posts: 3332
Location: essex uk
EXCELLENT work!, ive split this from the original topic and now its sticky!, thanks for your effort, FANTASTIC job
roy


Top

 Post subject:
PostPosted: Tue Apr 01, 2008 2:48 pm
Offline
Archos Guru
Archos Guru

Joined: Wed Mar 21, 2007 10:54 am
Posts: 782
Location: UK
Absolutely! Excellent. :D

_________________
Andy W


Top

PostPosted: Mon Jun 28, 2010 9:15 am
Offline
Archos Novice
Archos Novice

Joined: Mon Jun 28, 2010 8:51 am
Posts: 3
Just wanted to note that you did not mention the model. There is a bubble on the back of yours that is not on the AV420 so the drive you show may not fit in an av420. I am sure the steps are similar to the AV420 (as I remember). The drive you show I believe is too big for some AV400 models.


Top

PostPosted: Mon Sep 20, 2010 12:35 am
Offline
Archos Novice
Archos Novice

Joined: Sun Sep 05, 2010 11:23 pm
Posts: 3
Yes, absolutely fantastic effort. Well done.

Just wondering, do you think it's possible to upgrade to a larger harddrive. Mine is an AV480. Would be nice to go as big as I can

Thanks


Top

PostPosted: Sat Oct 16, 2010 2:41 am
Offline
Moderator
Moderator

Joined: Tue Nov 14, 2006 3:15 am
Posts: 3332
Location: essex uk
JT101 wrote:
Yes, absolutely fantastic effort. Well done.

Just wondering, do you think it's possible to upgrade to a larger harddrive. Mine is an AV480. Would be nice to go as big as I can

Thanks



if memory serves the max you will get the machine to recognise is 120gb. seems pretty small to todays sizes...
roy

_________________
COYI


Top

PostPosted: Sat Mar 05, 2011 2:35 am
Offline
Archos Novice
Archos Novice

Joined: Thu Feb 03, 2011 9:53 am
Posts: 1
Do you hear a clicking noise? Sounds like your hard drive is dead.

_________________
Here go words bout me.


Top

PostPosted: Fri Mar 18, 2011 1:05 pm
Offline
Archos Novice
Archos Novice

Joined: Fri Mar 18, 2011 12:58 pm
Posts: 1
Thanks Archos123, I followed your instructions and although my AV400 had different screw locations I got the disk out. The drive is dead because whan you switch it on it clicks a few times then a screen message pops up about drive failure.

The disk is a Hitachi Travelstar model HTC424020F7AT00 which is a 20Gb 4200rpm ATA-5 (IDE) 7mm thick drive.
I've trawled the net for a replacement but they seem very rare. Can someone suggest where to get a new disk from? I'm in the UK.

Regards
